NCP51561DBDWR2G - onsemi

Description: 4.5-A Peak Source, 9-A Peak Sink Output Current Capability; Output Supply Voltage from 6.5 V to 30 V with 5-V, 8-V, and 17-V UVLO threshold.; Propagation Delay Typical 36 ns with 8 ns Max Delay Matching per channel; User Programmable Input Logic for Single or Dual-input modes via ANB; Common Mode Transient Immunity CMTI > 200 V/ns; 5 kVrms Galvanic Isolation from input to each output & 1200 V peak differential voltage between output channels; User Programmable Dead-Time; Enable or Disable pin

Download NCP51561DBDWR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

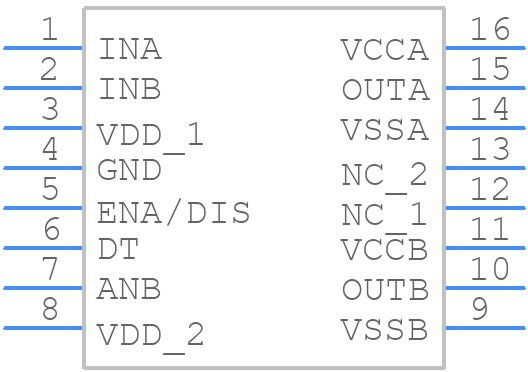

NCP51561DBDWR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP51561DBDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 WB CASE 751G ISSUE E
click to zoom
3D Models
NCP51561DBDWR2G - onsemi - 3D model - Small Outline Packages - SOIC-16 WB CASE 751G ISSUE E
click to zoom

NCP51561DBDWR2G Details

  • Manufacturer Part Number:

    NCP51561DBDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751G-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Peak Current Limit-Nom:

    9 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL GOLD PALLADIUM

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.058 µs

  • Turn-on Time:

    0.058 µs

  • Width:

    7.5 mm

NCP51561DBDWR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • Using a lower input voltage than the recommended 12V may affect the device's efficiency and output voltage regulation. Using a higher input voltage may increase power dissipation and reduce the device's reliability. It's essential to consult the datasheet and application notes for specific guidance.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback network. Ensure that the feedback resistors are correctly selected and that the output voltage is within the specified range. Consult the datasheet and application notes for specific guidance.
  • The NCP51561DBDWR2G is designed to meet EMI and EMC requirements, but proper PCB layout, component selection, and shielding are still essential to minimize electromagnetic interference. Follow the datasheet and application notes for specific guidance on EMI and EMC considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP51561DBDWR2G Overview

Use the download button to access the NCP51561DBDWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP51, or try a keyword search, such as MOSFET Drivers
