NCP51563BBDWR2G - onsemi

Description: SOIC-16 less pins 12 & 13 with 3.3 mm spacing between channels; 4.5-A Peak Source, 9-A Peak Sink Output Current Capability; Output Supply Voltage from 6.5 V to 30 V with 5-V, 8-V, and 17-V UVLO threshold.; Propagation Delay Typical 36 ns with 8 ns Max Delay Matching per channel; User Programmable Input Logic for Single or Dual-input modes via ANB; Common Mode Transient Immunity CMTI > 200 V/ns; 5 kVrms Galvanic Isolation from input to each output & 1850 V peak differential voltage between output channels; E

Download NCP51563BBDWR2G Model

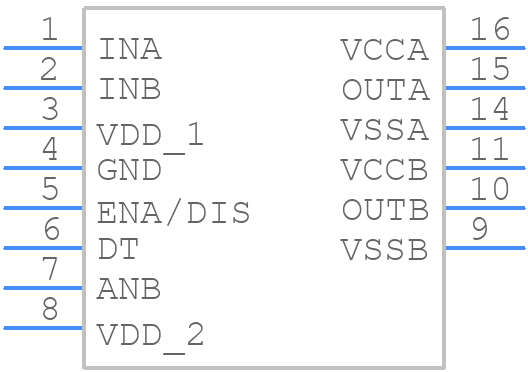

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51563BBDWR2G - onsemi PCB footprint - Other - Other - NCP51563BBDWR2G
click to zoom

NCP51563BBDWR2G Details

  • Manufacturer Part Number:

    NCP51563BBDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC−16 WB LESS PINS 12 & 13

  • Package Description:

    SOIC-16/14

  • Manufacturer Package Code:

    752AJ

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    9 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.058 µs

  • Turn-on Time:

    0.058 µs

  • Width:

    7.5 mm
