NCP51705MNTXG - onsemi

Description: High Peak Output Current with Split Output Stages; Extended Positive Voltage Rating up to 28 V Max; User−adjustable Built−in Negative Charge Pump (-3.3 V to -8 V); Accessible 5 V Reference / Bias Rail; Adjustable Under−Voltage Lockout; Fast Desaturation Function; QFN24 Package 4 x 4 mm

Download NCP51705MNTXG Model
Schematic
symbols

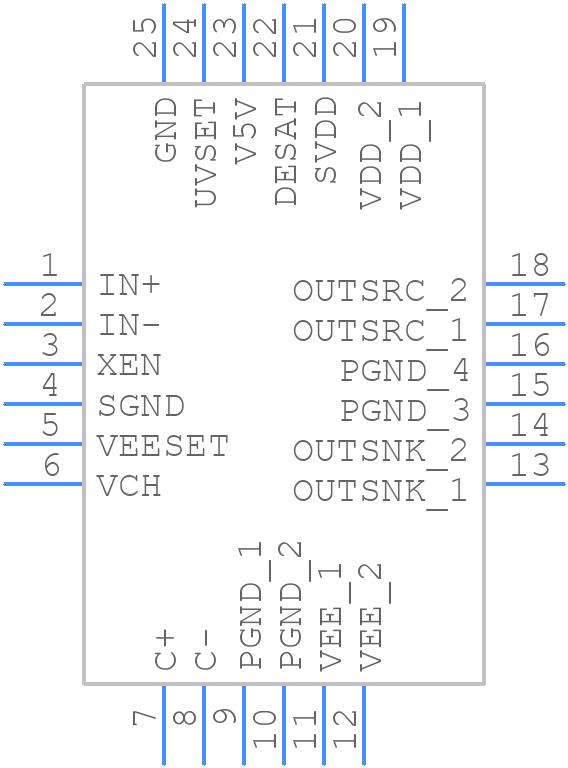

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51705MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NCP51705MNTXG-1
click to zoom
3D Models
NCP51705MNTXG - onsemi  - 3D model - Quad Flat No-Lead - NCP51705MNTXG-1
click to zoom

NCP51705MNTXG Details

  • Manufacturer Part Number:

    NCP51705MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WQFN-24

  • Package Description:

    WQFN-24

  • Manufacturer Package Code:

    510BE

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Date Of Intro:

    2017-11-03

  • Manufacturer:

    onsemi

  • YTEOL:

    5.1

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    25 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    22 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    4 mm

NCP51705MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the PCB.
  • The device requires a stable input voltage (VIN) and a proper bias voltage (VBIAS) to operate correctly. Ensure that VIN is within the recommended range (4.5V to 18V) and VBIAS is set to 5V ± 10%.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 22uF is recommended for the input capacitor (CIN). This helps to filter out noise and ensure stable operation.
  • The POR and BOR functions are enabled by default. To use these functions, connect the POR/BOR pin to a capacitor (typically 10nF to 100nF) and a pull-up resistor (typically 1kΩ to 10kΩ) to VIN. This allows the device to reset properly during power-up and brown-out conditions.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 22uF is recommended for the output capacitor (COUT). This helps to filter out noise and ensure stable output voltage regulation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP51705MNTXG Overview

Use the download button to access the NCP51705MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP51, or try a keyword search, such as MOSFET Drivers
