NCP51810AMNTWG - onsemi

Description: 150 V, high side and low side gate driver; Fast propagation delay of 50 ns max; Fast propagation delay of 50 ns max; 200 V/ns dV/dt Rating for all SW and PGND Referenced Circuitry; Separate source and sink output pin; Regulated 5.2 V gate driver with independent UVLO for high side and low side output stages; QFN 4 mm x 4 mm 15 pin packaging and optimized pin out

Download NCP51810AMNTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

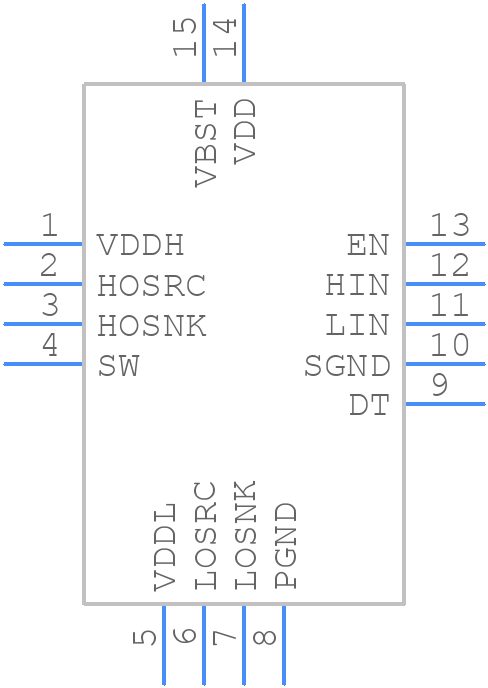

NCP51810AMNTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP51810AMNTWG - onsemi PCB footprint - Other - Other - QFN15 4x4, 0.5P
click to zoom
3D Models
NCP51810AMNTWG - onsemi - 3D model - Other - QFN15 4x4, 0.5P
click to zoom

NCP51810AMNTWG Details

  • Manufacturer Part Number:

    NCP51810AMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-15

  • Manufacturer Package Code:

    485FN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-06

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

NCP51810AMNTWG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 6.5V. Exceeding this voltage may damage the device.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input lines to protect the device from electrostatic discharge.
  • The recommended input capacitance value is 10uF to 22uF, depending on the specific application and input voltage ripple requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP51810AMNTWG Overview

Use the download button to access the NCP51810AMNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP51, or try a keyword search, such as Peripheral Drivers
