Part Image

NCP51820 - onsemi

Description: High Speed Half-Bridge Driver for GaN Power Switches High-Speed 650V 200 V/ns dV/dt

Download NCP51820 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NCP51820 model

Email notifications will be applied after download.

Send part feedback

Symbol

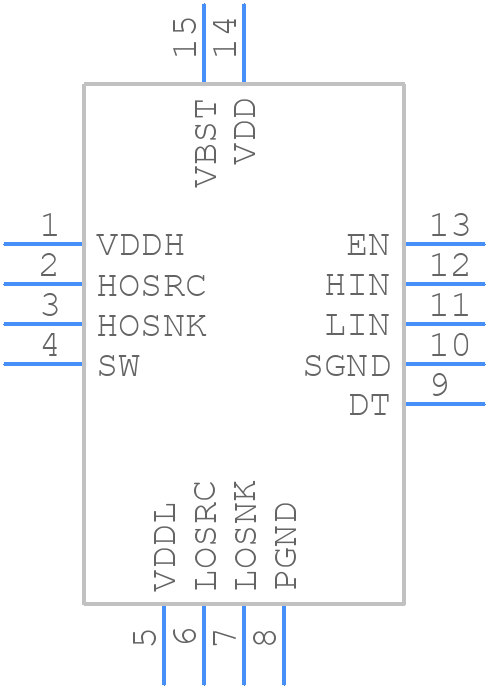

NCP51820 - onsemi - PCB symbol

PCB Footprints

NCP51820 - onsemi PCB footprint - Other - Other - QFN15 4x4, 0.5P CASE 485FN ISSUE B

3D Models

NCP51820 - onsemi - 3D model - Other - QFN15 4x4, 0.5P CASE 485FN ISSUE B

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP51820
Part Number NCP51820
Manufacturer onsemi
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN15 4x4, 0.5P CASE 485FN ISSUE B
Released Date Oct 21, 2022
Last Modified Date Jul 18, 2023 11:17 AM UTC
Pinout / Pin List Click Here (Member Only)

NCP51820 Details

Manufacturer Part Number:
NCP51820
Manufacturer:
onsemi

Trust Checks

Community Provided

System Verified

Community Approved

NCP51820 Overview

Use the download button to access the NCP51820 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NCP51, or try a keyword search, such as MOSFET Drivers
