NCP51820AMNTWG - onsemi

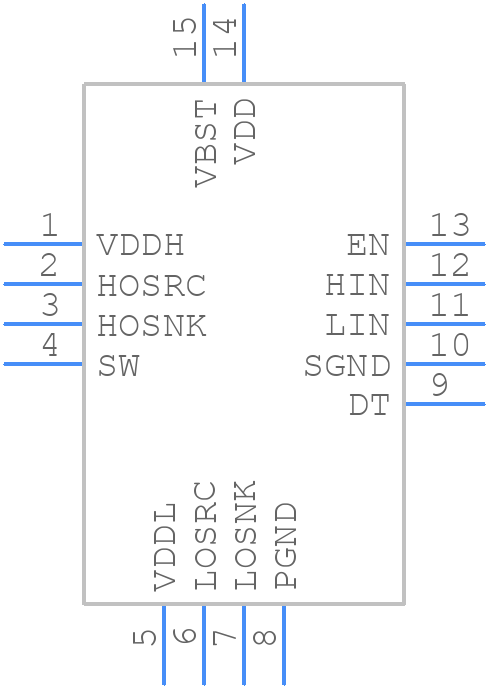

NCP51820AMNTWG Details

• Manufacturer Part Number:

  NCP51820AMNTWG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN-15

• Package Description:

  QFN-15

• Manufacturer Package Code:

  485FN

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  62 Weeks, 6 Days

• Date Of Intro:

  2019-08-15

• Manufacturer:

  onsemi

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED GAN FET DRIVER

• JESD-30 Code:

  S-XQCC-N15

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  2 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC15/20,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.9 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Max:

  17 V

• Supply Voltage-Min:

  9 V

• Supply Voltage-Nom:

  15 V

• Supply Voltage1-Max:

  597 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.05 µs

• Turn-on Time:

  0.05 µs

• Width:

  4 mm
