NCP5304PG - onsemi

Description: Obsolete - Three Phase Buck Controller

Download NCP5304PG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

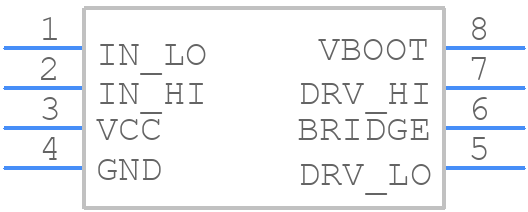

Symbol
NCP5304PG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP5304PG - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
click to zoom
3D Models
NCP5304PG - onsemi - 3D model - Dual-In-Line Packages - 8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for NCP5304PG
  • Part Number NCP5304PG
  • Manufacturer onsemi
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Dual-In-Line Packages
  • Footprint Name Dual-In-Line Packages - 8−Pin Plastic Dual In−Line Package (PDIP−8) N SUFFIX CASE 626−05 ISSUE N
  • Released Date Aug 18, 2015
  • Last Modified Date Sep 19, 2024 2:45 PM UTC
  • Pinout / Pin List Click Here (Member Only)

NCP5304PG Details

  • Manufacturer Part Number:

    NCP5304PG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 LEAD PDIP

  • Package Description:

    PDIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    626-05

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.59 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.17 µs

  • Turn-on Time:

    0.17 µs

  • Width:

    7.62 mm

NCP5304PG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP5304PG should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. The datasheet provides a recommended land pattern, but it's essential to follow good thermal design practices to ensure optimal heat dissipation.
  • When selecting input capacitors for the NCP5304PG, consider the voltage rating, capacitance value, and ESR (Equivalent Series Resistance). A minimum capacitance of 10uF is recommended, with a voltage rating of at least 25V. Low ESR capacitors (e.g., X5R or X7R dielectrics) are preferred to minimize voltage ripple and ensure stable operation.
  • The NCP5304PG is rated for operation up to 105°C ambient temperature, but it's essential to consider the device's power dissipation and thermal resistance when designing the system. Ensure that the device is properly cooled, and the ambient temperature is within the specified range to prevent overheating and ensure reliable operation.
  • Yes, the NCP5304PG is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific requirements of your application.
  • When troubleshooting issues with the NCP5304PG, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component selection to ensure they meet the recommended specifications. Use an oscilloscope to monitor the output voltage and current, and check for signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP5304PG Overview

Use the download button to access the NCP5304PG schematic symbol, PCB footprint, and 3D model.
