NCP5359ADR2G - onsemi

Description: ON Semiconductor NCP5359ADR2G, Dual MOSFET Power Driver Synchronous, 10 → 13.2 V, Non-Inverting, 8-Pin SOIC

Download NCP5359ADR2G Model

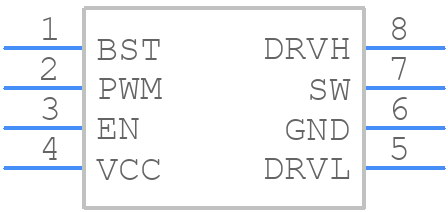

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5359ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCP5359ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCP5359ADR2G Details

  • Manufacturer Part Number:

    NCP5359ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.035 µs

  • Turn-on Time:

    0.035 µs

  • Width:

    3.9 mm

NCP5359ADR2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP5359ADR2G is -40°C to 125°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1Ω or less, and to place the output capacitor close to the output pin of the device.
  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of 10V or higher, and an ESR of 1Ω or less.
  • The output voltage can be calculated using the formula: Vout = (R1/R2) * (1.25V), where R1 and R2 are the resistors connected to the FB pin.
  • The maximum input voltage that the NCP5359ADR2G can handle is 18V.
