NCP5392PMNR2G - onsemi

Description: Obsolete - 2/3/4-Phase VR11.1 Buck Controller

Download NCP5392PMNR2G Model

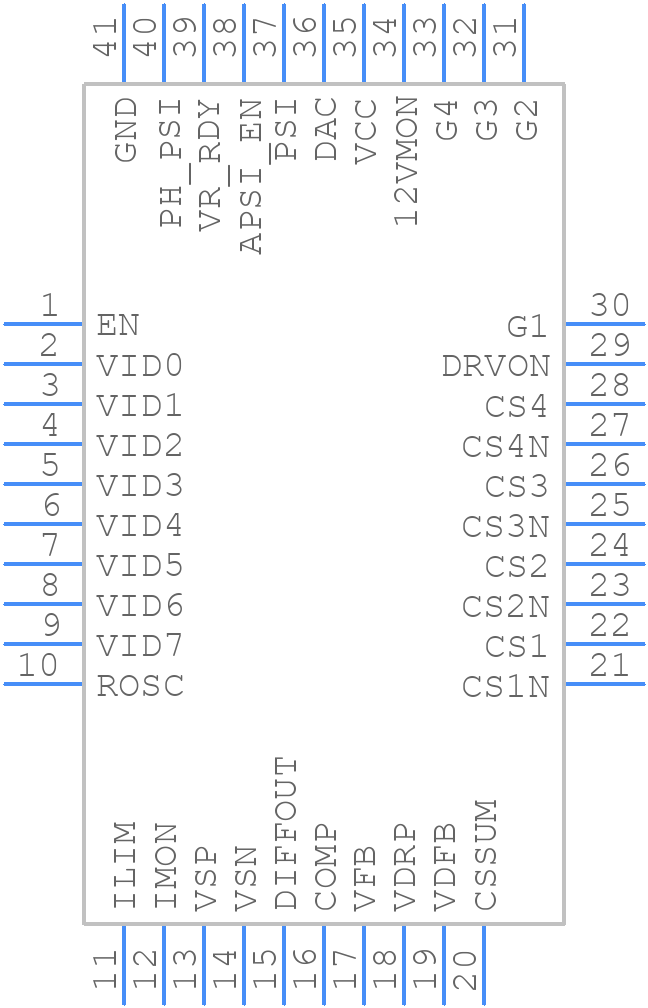

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5392PMNR2G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 6x6, 0.5P CASE 488AR−01 ISSUE A
click to zoom
3D Models
NCP5392PMNR2G - onsemi  - 3D model - Quad Flat No-Lead - QFN40 6x6, 0.5P CASE 488AR−01 ISSUE A
click to zoom

NCP5392PMNR2G Details

  • Manufacturer Part Number:

    NCP5392PMNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN40 6x6, 0.5P, 4.1x4.1EP

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    488AR

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.0005 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCP5392PMNR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the thermal path short and using a large copper area for heat dissipation is recommended.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and take corrective action if necessary.
  • If the EN (enable) pin is not connected, the device will be in a default enabled state, which may lead to unexpected behavior or power consumption. It is recommended to connect the EN pin to a suitable voltage source or ground to ensure proper device operation and control.
  • The NCP5392PMNR2G is designed for high-current applications, but it is essential to ensure that the device is properly heatsinked and that the PCB layout is designed to handle high currents. Additionally, the device's current rating should not be exceeded, and proper thermal management should be implemented to prevent overheating.
  • To troubleshoot issues with the device's overcurrent protection, check the current sense resistor value, ensure that the sense pins are properly connected, and verify that the device is not overheating. Additionally, check the device's datasheet for specific troubleshooting guidelines and consider using an oscilloscope to monitor the device's behavior.
