A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, ensure good thermal design, use a heat sink if necessary, and consider derating the device's power handling at high temperatures.
The NCP565D2TR4G has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within the recommended operating conditions, and consider adding external protection circuits if necessary.
To optimize the device's performance for low-voltage operation, ensure that the input voltage is within the recommended range, and consider using an external voltage regulator if necessary. Additionally, optimize the PCB layout to minimize voltage drops and ensure good power integrity.
The recommended test and measurement procedures for the NCP565D2TR4G involve using a curve tracer or a parameter analyzer to measure the device's electrical characteristics, such as voltage and current. Ensure that the test equipment is properly calibrated and configured for accurate measurements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP565D2TR4G Overview

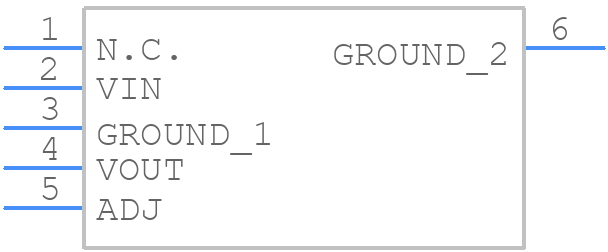

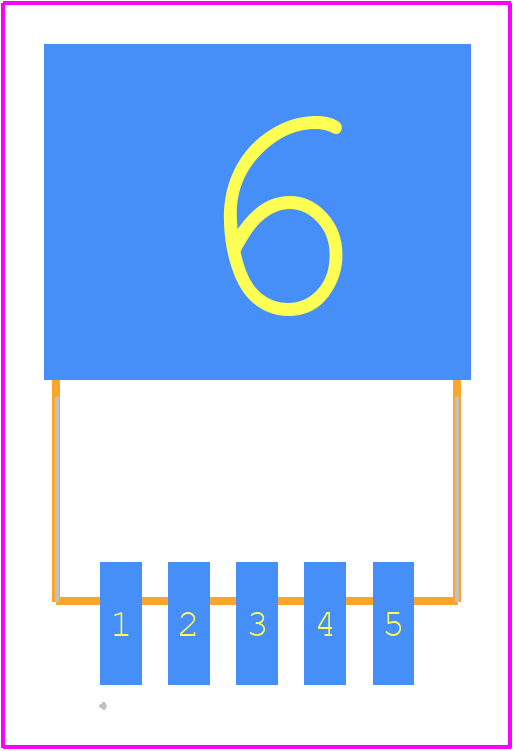

Use the download button to access the NCP565D2TR4G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP56,
or try a keyword search, such as Linear Regulator ICs
