NCP565MN28T2G - onsemi

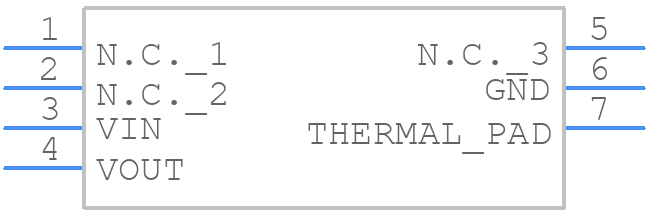

NCP565MN28T2G Details

• Manufacturer Part Number:

  NCP565MN28T2G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DFN6, 3x3.3x0.9mm, 0.95mm Pitch

• Pin Count:

  6

• Manufacturer Package Code:

  506AX

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  1.3 V

• Input Voltage Absolute-Max:

  18 V

• Input Voltage-Max:

  9 V

• Input Voltage-Min:

  4.1 V

• JESD-30 Code:

  R-PDSO-N6

• JESD-609 Code:

  e3

• Length:

  3.3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  2.884 V

• Output Voltage1-Min:

  2.716 V

• Output Voltage1-Nom:

  2.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.13,38

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.9 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.95 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  3 mm
