NCP5662DS33R4G - onsemi

Description: ON Semiconductor NCP5662DS33R4G, LDO Voltage Regulator, 2A, 3.3 V, 2 → 9 Vin, 5-Pin D2PAK

Download NCP5662DS33R4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

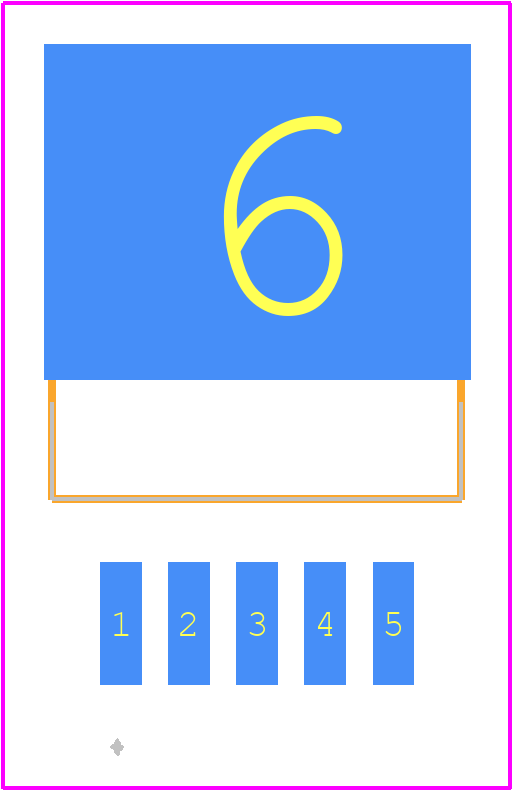

NCP5662DS33R4G - onsemi PCB footprint - Other - Other - NCP5662DS33R4G-2
click to zoom

NCP5662DS33R4G Details

  • Manufacturer Part Number:

    NCP5662DS33R4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    5 LEAD D2PAK

  • Pin Count:

    5

  • Manufacturer Package Code:

    936A-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    1.3 V

  • Dropout Voltage1-Nom:

    1 V

  • Input Voltage Absolute-Max:

    18 V

  • Input Voltage-Max:

    9 V

  • Input Voltage-Min:

    4.6 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.18 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP5H,.54,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.57 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    8.51 mm

NCP5662DS33R4G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage in a noisy environment, it's recommended to use a low-ESR output capacitor, and to add a 10nF-100nF ceramic capacitor in parallel with the output capacitor to filter out high-frequency noise.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • A 10uF-22uF ceramic or electrolytic capacitor with a voltage rating of 25V or higher is recommended for the input capacitor. This helps to filter out input noise and ensure stable operation.
