NCP5663DSADJR4G - onsemi

Description: Linear Voltage Regulator, LDO, Fast Response, 3.0 A, with Enable Vout: Adj

Download NCP5663DSADJR4G Model

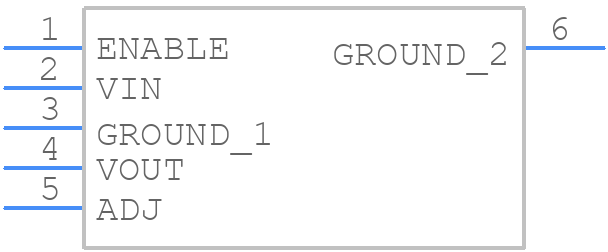

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

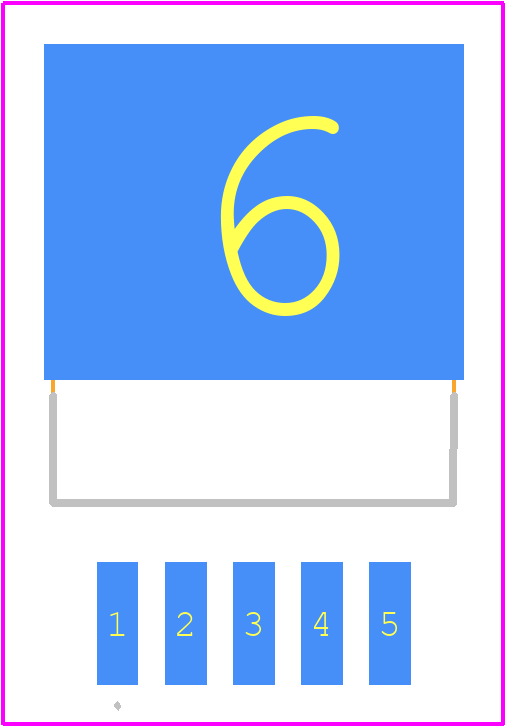

PCB Footprints
NCP5663DSADJR4G - onsemi PCB footprint - Other - Other - D2PAK CASE 936A
click to zoom
3D Models
NCP5663DSADJR4G - onsemi  - 3D model - Other - D2PAK CASE 936A
click to zoom

NCP5663DSADJR4G Details

  • Manufacturer Part Number:

    NCP5663DSADJR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    5 LEAD D2PAK

  • Pin Count:

    5

  • Manufacturer Package Code:

    936A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.1

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.3 V

  • Dropout Voltage1-Nom:

    1 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.02 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    7.7 V

  • Output Voltage1-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Equivalence Code:

    SMSIP5H,.54,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.826 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.1945 mm

NCP5663DSADJR4G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP5663DSADJR4G is -40°C to 125°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, and to follow the layout guidelines provided in the datasheet.
  • The recommended input capacitor value for the NCP5663DSADJR4G is 1uF to 10uF, with a voltage rating of at least 6.3V.
  • The output voltage of the NCP5663DSADJR4G can be calculated using the formula: Vout = (R1 / R2) x Vref, where R1 and R2 are the resistors in the feedback network, and Vref is the internal reference voltage (1.25V).
  • The maximum input voltage for the NCP5663DSADJR4G is 18V.
