NCP57302DSADJR4G - onsemi

Description: Obsolete - Ultra Low Noise 120mA LDO (with enable)

Download NCP57302DSADJR4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

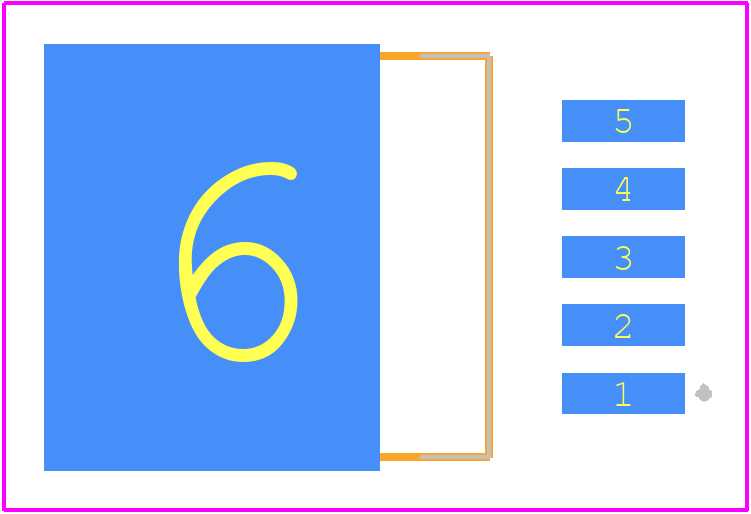

NCP57302DSADJR4G - onsemi PCB footprint - Other - Other - D2PAK 5−LEAD CASE 936A−02 ISSUE D
click to zoom
3D Models
NCP57302DSADJR4G - onsemi  - 3D model - Other - D2PAK 5−LEAD CASE 936A−02 ISSUE D
click to zoom

NCP57302DSADJR4G Details

  • Manufacturer Part Number:

    NCP57302DSADJR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    5 LEAD D2PAK

  • Package Description:

    D2PAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    936A-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.52 V

  • Dropout Voltage1-Nom:

    0.315 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.02 mm

  • Line Regulation-Max (%/V):

    0.043

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    13 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SMSIP5H,.54,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.826 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.1945 mm

NCP57302DSADJR4G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note or a thermal simulation may be necessary for optimal design.
  • To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage rises and falls monotonically, and that the input capacitance is sufficient to filter out noise and ripple.
  • To minimize EMI and noise, it's crucial to follow good layout practices such as separating analog and digital grounds, using a solid ground plane, and minimizing loop areas. Additionally, ensure that the device is placed away from noise sources, and that the input and output traces are properly routed and shielded.
  • To optimize the device for low-power operation, ensure that the input voltage is minimized, and that the device is operated at the lowest possible frequency. Additionally, consider using a low-power mode or shutdown feature if available, and optimize the external component selection for low power consumption.
  • To ensure reliability and long-term stability, it's essential to follow proper soldering and assembly techniques, and to ensure that the device is operated within its recommended operating conditions. Additionally, consider using a robust PCB design, and ensuring that the device is protected from environmental stresses such as temperature, humidity, and vibration.
