Part Image

NCP5901BMNTBG - onsemi

Description: Faster Rise and Fall Times • Adaptive Anti−Cross−Conduction Circuit • Integrated Bootstrap Diode • Pre OV function • ZCD Detect • Floating Top Driver Accommodates Boost Voltages of up to 35 V • Output Disable Control Turns Off Both MOSFETs • Under−voltage Lockout • Power Saving Operation Under Light Load Conditions • Direct Interface to NCP6151 and Other Compatible PWM Controllers • Thermally Enhanced Package • These are Pb−Free Dev

Download NCP5901BMNTBG Model

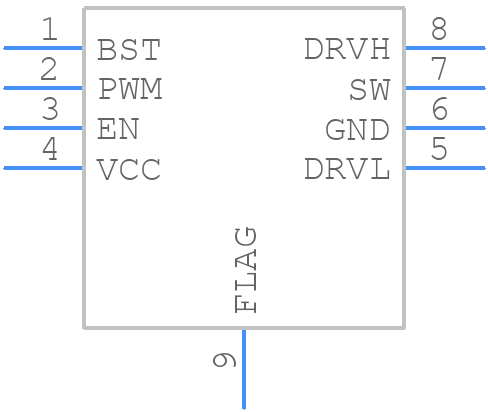

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5901BMNTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 2X2 CASE 506AA ISSUEE
click to zoom
3D Models
NCP5901BMNTBG - onsemi  - 3D model - Small Outline No-lead - DFN8 2X2 CASE 506AA ISSUEE
click to zoom

NCP5901BMNTBG Details

  • Manufacturer Part Number:

    NCP5901BMNTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8 2.0x2.0x0.9mm, 0.5p

  • Pin Count:

    8

  • Manufacturer Package Code:

    506AA

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    2 mm

NCP5901BMNTBG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP5901BMNTBG is -40°C to 150°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage should be decoupled with a 10nF capacitor.
  • The recommended input capacitor value for the NCP5901BMNTBG is 10uF to 22uF, with a voltage rating of 6.3V or higher.
  • The output voltage of the NCP5901BMNTBG can be calculated using the formula: Vout = (R1 / R2) x Vref, where R1 and R2 are the resistors connected to the FB pin, and Vref is the internal reference voltage (1.25V).
  • The maximum input voltage that the NCP5901BMNTBG can handle is 18V.
