NCP59151MN33TYG - onsemi

Description: ON SEMICONDUCTOR - NCP59151MN33TYG - Fixed LDO Voltage Regulator, 2.24V to 13.5V, 300mV Dropout, 3.3Vout, 1.5Aout, DFN-8

Download NCP59151MN33TYG Model

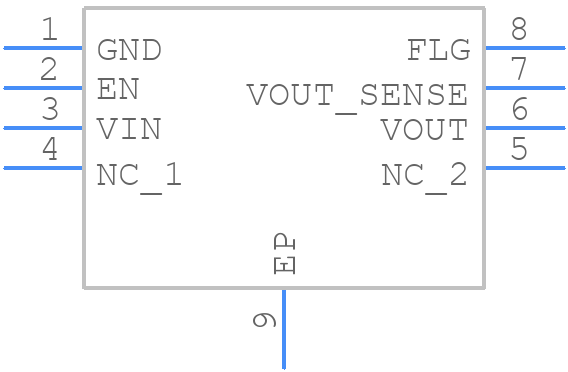

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP59151MN33TYG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 PIN DFN 4x4 CASE-488AF-01 ISSUE C
click to zoom
3D Models
NCP59151MN33TYG - onsemi  - 3D model - Small Outline No-lead - 8 PIN DFN 4x4 CASE-488AF-01 ISSUE C
click to zoom

NCP59151MN33TYG Details

  • Manufacturer Part Number:

    NCP59151MN33TYG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 PIN DFN, 4x4

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    488AF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    18 V

  • Input Voltage-Max:

    13.5 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max:

    0.0165%

  • Load Regulation-Max:

    0.033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    4 mm

NCP59151MN33TYG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP59151MN33TYG is -40°C to 125°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1Ω or less, and to place the capacitor as close to the output pin as possible.
  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of 6.3V or higher, and an ESR of 1Ω or less.
  • The output voltage can be calculated using the formula: Vout = (R1/R2) * (Vref), where R1 and R2 are the resistors connected to the FB pin, and Vref is the internal reference voltage (1.25V).
  • The maximum input voltage that the NCP59151MN33TYG can handle is 18V.
