NCP59151MN50TYG - onsemi

Description: ON Semiconductor NCP59151MN50TYG, LDO Voltage Regulator, 1.5A, 5 V ±2%, 2.24 → 13.5 Vin, 8-Pin DFN

Download NCP59151MN50TYG Model

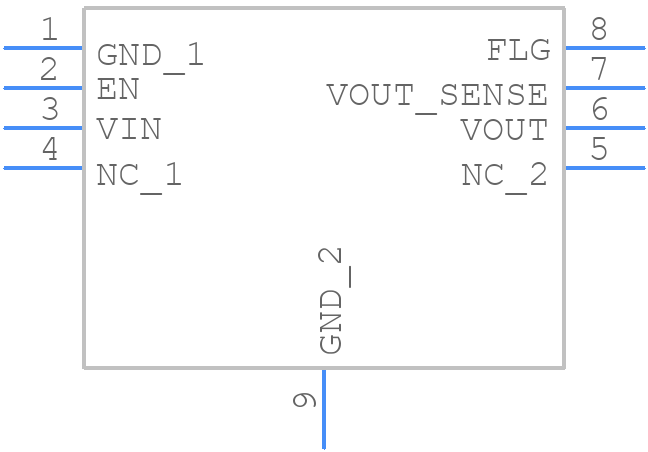

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP59151MN50TYG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 PIN DFN 4x4 CASE-488AF-01 ISSUE C
click to zoom
3D Models
NCP59151MN50TYG - onsemi  - 3D model - Small Outline No-lead - 8 PIN DFN 4x4 CASE-488AF-01 ISSUE C
click to zoom

NCP59151MN50TYG Details

  • Manufacturer Part Number:

    NCP59151MN50TYG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8 PIN DFN, 4x4

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    488AF

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    18 V

  • Input Voltage-Max:

    13.5 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    4 mm

NCP59151MN50TYG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP59151MN50TYG is -40°C to 150°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input capacitance should be at least 10uF with an ESR of 1 ohm or less.
  • The recommended input voltage range for the NCP59151MN50TYG is 4.5V to 18V.
  • The output voltage of the NCP59151MN50TYG can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref) + Vref, where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (typically 0.8V).
  • The maximum current rating of the NCP59151MN50TYG is 5A.
