NCP59152MNADJTYG - onsemi

Description: ON Semiconductor NCP59152MNADJTYG, LDO Voltage Regulator, Adjustable 1.5A, ±2%, 2.24 → 13.5 Vin, 8-Pin DFN

Download NCP59152MNADJTYG Model
Schematic

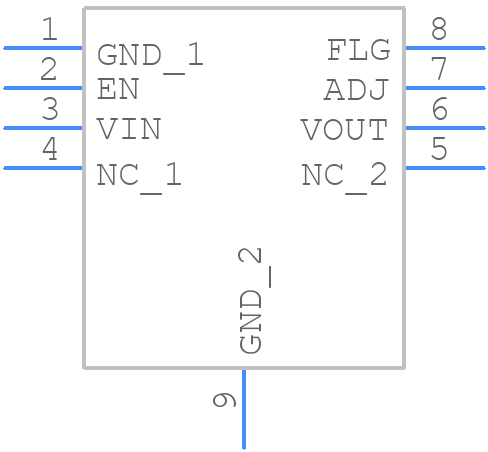

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP59152MNADJTYG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCP59152MNADJTYG
click to zoom
3D Models
NCP59152MNADJTYG - onsemi  - 3D model - Small Outline No-lead - NCP59152MNADJTYG
click to zoom

NCP59152MNADJTYG Details

  • Manufacturer Part Number:

    NCP59152MNADJTYG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 PIN DFN, 4x4

  • Pin Count:

    8

  • Manufacturer Package Code:

    488AF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max (%/V):

    0.044

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCP59152MNADJTYG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP59152MNADJTYG is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The recommended input capacitor value for the NCP59152MNADJTYG is 1uF to 10uF, with a voltage rating of at least 2x the input voltage.
  • Yes, the NCP59152MNADJTYG is suitable for high-reliability applications, as it is manufactured using a robust process and has undergone rigorous testing and qualification.
  • The power dissipation of the NCP59152MNADJTYG can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
