NCP59301DS33R4G - onsemi

NCP59301DS33R4G Details

• Manufacturer Part Number:

  NCP59301DS33R4G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

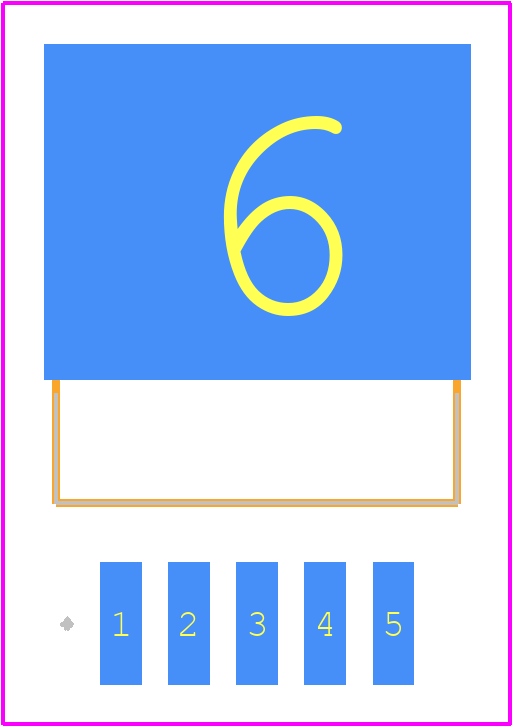

• Part Package Code:

  5 LEAD D2PAK

• Package Description:

  D2PAK-5

• Pin Count:

  5

• Manufacturer Package Code:

  936A-02

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.5 V

• Dropout Voltage1-Nom:

  0.3 V

• Input Voltage Absolute-Max:

  18 V

• Input Voltage-Max:

  13.5 V

• Input Voltage-Min:

  2.24 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e3

• Length:

  10.02 mm

• Line Regulation-Max:

  0.0165%

• Load Regulation-Max:

  0.033%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  3 A

• Output Voltage1-Max:

  3.3825 V

• Output Voltage1-Min:

  3.2175 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SMSIP5H,.6,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  4.826 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.702 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2.5%

• Width:

  9.1945 mm
