NCP59744FCTCADJT2G - onsemi

Description: Output Current in Excess of 3.0 A; 115mV typical dropout at the full 3.0 A load; Fast Transient Response; Programmable Soft-Start; Open Drain Power Good Output; Stable with Any Type of Output Capacitor

Download NCP59744FCTCADJT2G Model

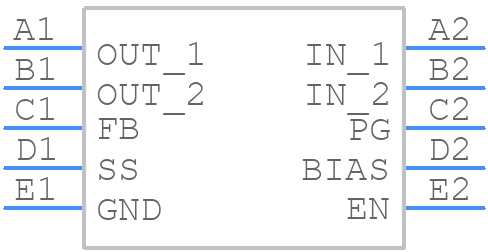

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP59744FCTCADJT2G - onsemi PCB footprint - Other - Other - WLCSP10, 2.075x1.025x0.35
click to zoom
3D Models
NCP59744FCTCADJT2G - onsemi  - 3D model - Other - WLCSP10, 2.075x1.025x0.35
click to zoom

NCP59744FCTCADJT2G Details

  • Manufacturer Part Number:

    NCP59744FCTCADJT2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP10, 2.075x1.025x0.35

  • Manufacturer Package Code:

    567ZC

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    49 Weeks

  • Date Of Intro:

    2020-11-25

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.14 V

  • Dropout Voltage1-Nom:

    0.075 V

  • JESD-30 Code:

    R-PBGA-B10

  • Length:

    2.075 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.796 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA10,2X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.39 mm

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    1.025 mm

NCP59744FCTCADJT2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 6.5V, which is the absolute maximum rating. Operating the device above this voltage can cause damage or malfunction.
  • Yes, the NCP59744FCTCADJT2G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within the recommended operating conditions and follow the recommended design guidelines.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, input signals, and output loads to ensure they are within the recommended operating conditions. Consult the datasheet and application notes for troubleshooting guidelines.
