NCP59749MN2ADJTBG - onsemi

Description: 0.8V to 3.6V Output Voltage Range; 0.8V to 5.5V Input Voltage Range; 120mV Typ. Dropout @ 3A; 25uVrms of Output Noise; Very Fast Transient Response; Output Current in Excess of 3.0 A; 120 mV typical dropout at the full 3.0 A load.; Fast Transient Response; Programmable Soft-Start; Open Drain Power Good Output; Stable with Any Type of Output Capacitor

Download NCP59749MN2ADJTBG Model
Schematic

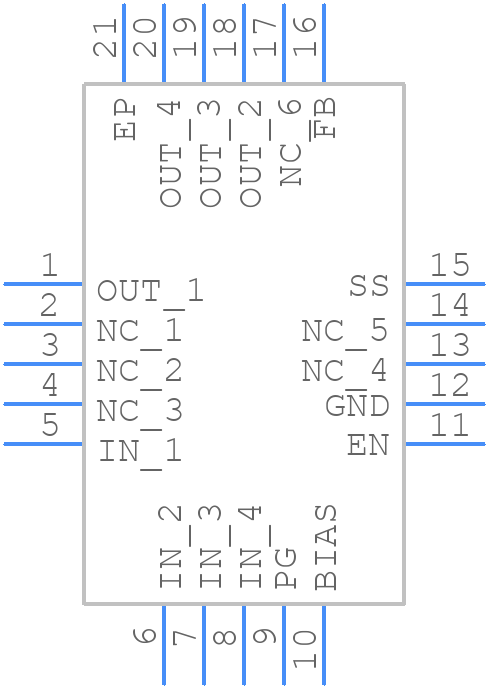

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP59749MN2ADJTBG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20 5X5 CASE 485DB ISSUE O
click to zoom
3D Models
NCP59749MN2ADJTBG - onsemi  - 3D model - Quad Flat No-Lead - QFN20 5X5 CASE 485DB ISSUE O
click to zoom

NCP59749MN2ADJTBG Details

  • Manufacturer Part Number:

    NCP59749MN2ADJTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN20 5x5, 0.65P

  • Package Description:

    QFN-20

  • Manufacturer Package Code:

    485DB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.28 V

  • Dropout Voltage1-Nom:

    0.12 V

  • JESD-30 Code:

    S-PQCC-N20

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.03

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    3.6 V

  • Output Voltage1-Min:

    0.798 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NCP59749MN2ADJTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet, and use a stable voltage source with minimal noise and ripple. Additionally, ensure the input and output capacitors are properly sized and placed close to the device.
  • To ensure EMI and EMC compliance, use a shielded enclosure, keep the device and surrounding components away from the enclosure edges, use a common-mode choke or ferrite bead on the input, and ensure the PCB layout is optimized for minimal radiation.
  • To troubleshoot issues, start by verifying the input voltage and current, checking for proper PCB layout and thermal design, and ensuring the device is properly biased. Use oscilloscopes and thermal imaging tools to identify the root cause of the issue.
