A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and ensure that the device is properly soldered to the PCB.
The critical parameters to monitor during operation to prevent overheating include the device temperature, output current, and input voltage. It's also essential to monitor the device's power dissipation and ensure that it's within the recommended specifications.
The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, consider the device's internal power losses, such as switching losses and conduction losses.
The recommended input and output capacitors for the NCP59763AMN120TBG depend on the specific application and operating conditions. However, as a general guideline, use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP59763AMN120TBG Overview

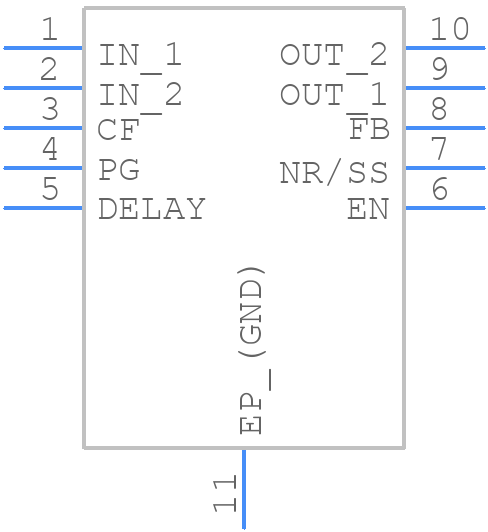

Use the download button to access the NCP59763AMN120TBG schematic symbol, PCB footprint, and 3D model.
