NCP59801CML330TCG - onsemi

Description: 1.6V to 5.5V input voltage; Output voltage from 0.6V; Controlled output voltage slew rate; PSRR: 85 dB at 1 kHz; Low dropout 120mV ar 3.3V / 1A; Ultra-Low Noise: 10µVRMS; WDFNW6 2 x 2mm and DFNW8 3 x 3mm

Download NCP59801CML330TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

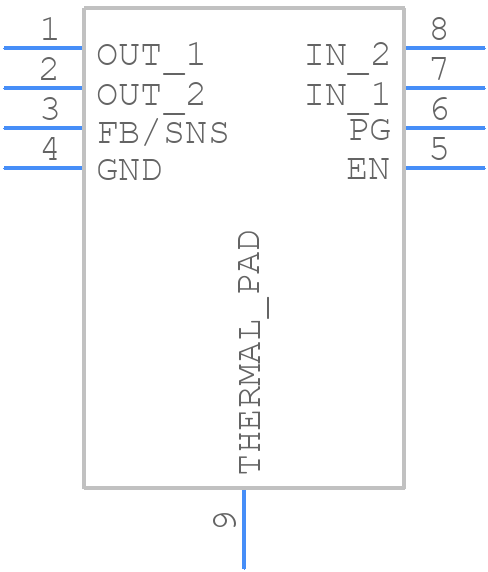

NCP59801CML330TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP59801CML330TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P
click to zoom
3D Models
NCP59801CML330TCG - onsemi - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P
click to zoom

NCP59801CML330TCG Details

  • Manufacturer Part Number:

    NCP59801CML330TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    507AD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.198 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max:

    0.002%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.333 V

  • Output Voltage1-Min:

    3.267 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    3 mm

NCP59801CML330TCG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To troubleshoot OVP and UVP issues, start by verifying the input voltage and ensuring it's within the recommended range. Check the device's pinouts and connections, and verify that the OVP and UVP thresholds are set correctly. Use an oscilloscope to monitor the input voltage and device behavior, and consult the datasheet for specific troubleshooting guidelines.
  • Not using the recommended input capacitor values can lead to instability, oscillations, or even device failure. The input capacitors play a critical role in filtering and regulating the input voltage, so it's essential to follow the recommended values and types to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP59801CML330TCG Overview

Use the download button to access the NCP59801CML330TCG schematic symbol, PCB footprint, and 3D model.
