NCP605MN33T2G - onsemi

Description: Obsolete - LDO Regulator, Low Ignd, with Enhanced ESD Protection

Download NCP605MN33T2G Model

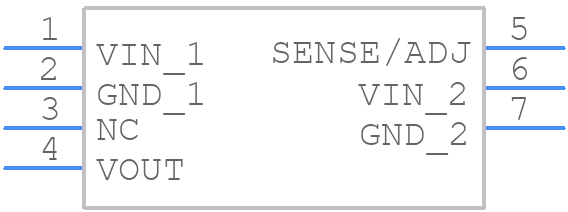

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP605MN33T2G - onsemi PCB footprint - Other - Other - DFN6 3x3.3 MM, 0.95 PITCH CASE 506AX−01 ISSUE O
click to zoom
3D Models
NCP605MN33T2G - onsemi  - 3D model - Other - DFN6 3x3.3 MM, 0.95 PITCH CASE 506AX−01 ISSUE O
click to zoom

NCP605MN33T2G Details

  • Manufacturer Part Number:

    NCP605MN33T2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN6, 3x3.3x0.9mm, 0.95mm Pitch

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    506AX

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.22 V

  • Dropout Voltage1-Nom:

    0.17 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    3.52 V

  • JESD-30 Code:

    R-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3.3 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

NCP605MN33T2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP605MN33T2G is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1Ω or less, and to place the capacitor as close to the output pin as possible.
  • The recommended input capacitor value for the NCP605MN33T2G is 1uF to 10uF, with a voltage rating of 50V or higher.
  • The power dissipation of the NCP605MN33T2G can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • The maximum output current capability of the NCP605MN33T2G is 3A.
