NCP606MN28T2G - onsemi

Description: Output Voltage Options:Adjustable, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 5.0 V; Adjustable Output by External Resistors from 5.0 V down to 1.25 V; Current Limit 675 mA; Low IGND (Independent of Load); ±1.5% Output Voltage Tolerance Over All Operating Conditions(Adjustable); ±2% Output Voltage Tolerance Over All Operating Conditions(Fixed); NCP605 Fixed is Direct Replacement LP8345; Typical Noise Voltage of 50 µVrms without a Bypass Capacitor; Enhanced ESD Ratings: 4 kV Human Body Mode (HBM) 400 V Machin

Download NCP606MN28T2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

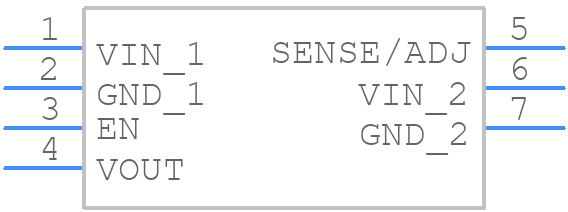

Symbol
NCP606MN28T2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP606MN28T2G - onsemi PCB footprint - Other - Other - DFN6 3.0x 3.3, 0.95P CASE 506AX ISSUE A
click to zoom

NCP606MN28T2G Details

  • Manufacturer Part Number:

    NCP606MN28T2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN6, 3x3.3x0.9mm, 0.95mm Pitch

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    506AX

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.24 V

  • Dropout Voltage1-Nom:

    0.19 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    3.04 V

  • JESD-30 Code:

    R-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3.3 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    2.856 V

  • Output Voltage1-Min:

    2.744 V

  • Output Voltage1-Nom:

    2.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.9 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

NCP606MN28T2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing a solid copper plane under the device, using thermal vias to connect the plane to the thermal pad, and keeping the thermal pad clear of solder mask. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider derating the device's power dissipation and voltage rating according to the temperature derating curves provided in the datasheet.
  • Exceeding the maximum junction temperature (Tj) can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To calculate the power dissipation of the NCP606MN28T2G, use the following formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, consider the device's quiescent current and switching losses when calculating the total power dissipation.
  • The recommended input and output capacitors for the NCP606MN28T2G are ceramic capacitors with a voltage rating of at least 2x the input voltage and a capacitance value of 10uF to 22uF. The output capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
