NCP6334BMTAATBG - onsemi

Description: 2.3 V to 5.5 V Input Voltage Range; 3 MHz Switching Frequency; Automatic Power Save Mode (NCP6334B) or Operating Mode Selection (NCP6334C)

Download NCP6334BMTAATBG Model

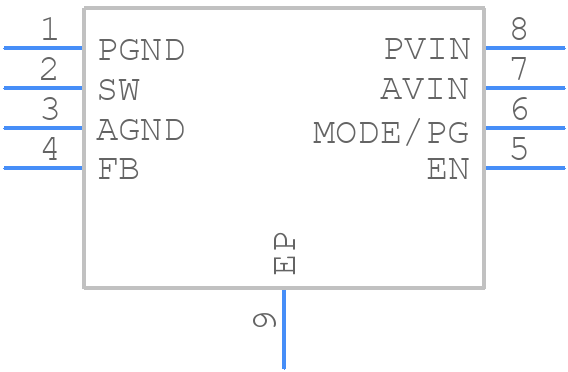

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP6334BMTAATBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN8 2x2, 0.5P CASE 511BE ISSUE A
click to zoom
3D Models
NCP6334BMTAATBG - onsemi  - 3D model - Small Outline No-lead - WDFN8 2x2, 0.5P CASE 511BE ISSUE A
click to zoom

NCP6334BMTAATBG Details

  • Manufacturer Part Number:

    NCP6334BMTAATBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN8 2x2, 0.5P

  • Package Description:

    WDFN8 2x2, 0.5P-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    511BE

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V; PFM CONTROL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP6334BMTAATBG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP6334BMTAATBG is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, and to follow the layout guidelines provided in the datasheet.
  • The recommended input capacitor value for the NCP6334BMTAATBG is 1uF to 10uF, with a voltage rating of at least 6.3V.
  • The output voltage of the NCP6334BMTAATBG can be calculated using the formula: Vout = (R1/R2) * (Vref), where R1 and R2 are the resistors connected to the FB pin, and Vref is the internal reference voltage (1.25V).
  • The maximum current rating for the NCP6334BMTAATBG is 3A.
