NCP711BMT300TBG - onsemi

Description: Operating Input Voltage Range: 2.7 V to 18 V; Output Voltage: 1.2 V to 17 V; Capable of Sourcing 140 mA Peak Output Current; Low Shutdown Current: 100 nA typ.; Very Low Quiescent Current: 1 uA typ.; Low Dropout: 215 mV typ. at 100 mA; Output Voltage Accuracy ±1%; Power Good Output (Version B); Stable with Small 1 uF Ceramic Capacitors; Built−in Soft Start Circuit

Download NCP711BMT300TBG Model

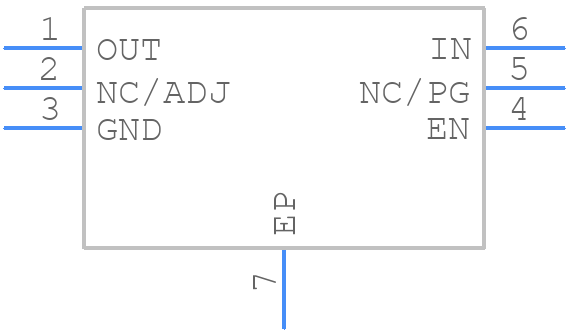

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP711BMT300TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2
click to zoom
3D Models
NCP711BMT300TBG - onsemi  - 3D model - Small Outline No-lead - WDFN6 2x2
click to zoom

NCP711BMT300TBG Details

  • Manufacturer Part Number:

    NCP711BMT300TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.355 V

  • Dropout Voltage1-Nom:

    0.215 V

  • Input Voltage Absolute-Max:

    22 V

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.006%

  • Load Regulation-Max(%):

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    3.06 V

  • Output Voltage1-Min:

    2.97 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm
