NCP716MT30TBG - onsemi

Description: Wide Input Voltage Range: Up to 24V; Ultra-Low Quiescent current: 3.2uA Typical; Fixed Output Voltage Options: from 1.2V to 5.0V; Power Supply Rejection Ratio: 60dB @ 100kHz; Package: 2mm x 2mm WDFN8

Download NCP716MT30TBG Model
Schematic

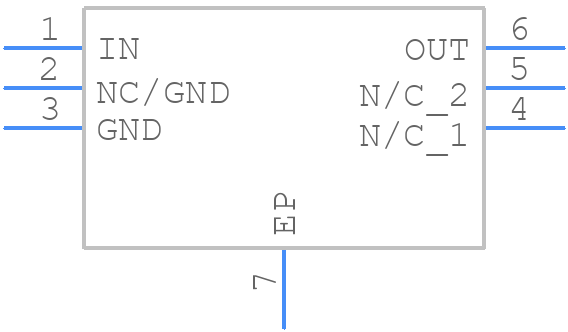

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP716MT30TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE B
click to zoom
3D Models
NCP716MT30TBG - onsemi  - 3D model - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE B
click to zoom

NCP716MT30TBG Details

  • Manufacturer Part Number:

    NCP716MT30TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Package Description:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.58 V

  • Dropout Voltage1-Nom:

    0.37 V

  • Input Voltage Absolute-Max:

    24 V

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.11 A

  • Output Voltage1-Max:

    3.06 V

  • Output Voltage1-Min:

    2.94 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

NCP716MT30TBG Frequently Asked Questions (FAQs)
