NCP718AMT250TBG - onsemi

Description: Ultra−Low Quiescent Current typ. 4 µA over Temperature; Operating Input Voltage Range 2.5 V to 24 V; Adjustable and Fixed Version Available; High PSRR 60dB at 1kHz; Noise typ. 36 µVRMS from 100 Hz to 100 kHz; Stable with 1 µF output capacitor; Soft−start to Reduce Inrush Current and Overshoots; SOA Limiting for High Vin / High Iout – Static and Dynamic

Download NCP718AMT250TBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

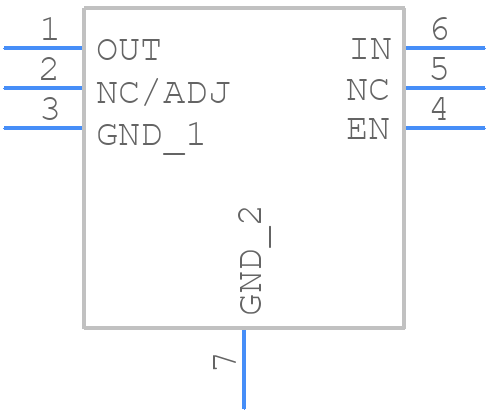

NCP718AMT250TBG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP718AMT250TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6
click to zoom
3D Models
NCP718AMT250TBG - onsemi - 3D model - Small Outline No-lead - WDFN6
click to zoom

NCP718AMT250TBG Details

  • Manufacturer Part Number:

    NCP718AMT250TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-09-05

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.505 V

  • Input Voltage Absolute-Max:

    24 V

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    2.55 V

  • Output Voltage1-Min:

    2.45 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

NCP718AMT250TBG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A minimum of 2oz copper thickness is recommended for the thermal pad.
  • To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It is essential to ensure that the device is operated within its specified temperature range to prevent thermal-related issues.
  • The NCP718AMT250TBG has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during device handling and assembly. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
  • The recommended storage and handling procedures for the NCP718AMT250TBG include storing the devices in their original packaging, avoiding exposure to moisture and extreme temperatures, and handling the devices by the body or leads to prevent damage to the pins.
