NCP718AMT500TBG - onsemi

Description: Ultra−Low Quiescent Current typ. 4 µA over Temperature; Operating Input Voltage Range 2.5 V to 24 V; Adjustable and Fixed Version Available; High PSRR 60dB at 1kHz; Noise typ. 36 µVRMS from 100 Hz to 100 kHz; Stable with 1 µF output capacitor; Soft−start to Reduce Inrush Current and Overshoots; SOA Limiting for High Vin / High Iout – Static and Dynamic

Download NCP718AMT500TBG Model
Schematic

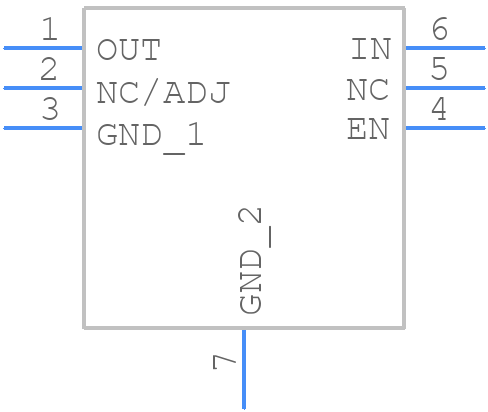

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP718AMT500TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCP718AMT500TBG
click to zoom
3D Models
NCP718AMT500TBG - onsemi  - 3D model - Small Outline No-lead - NCP718AMT500TBG
click to zoom

NCP718AMT500TBG Details

  • Manufacturer Part Number:

    NCP718AMT500TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2018-10-11

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.395 V

  • Dropout Voltage1-Nom:

    0.26 V

  • Input Voltage Absolute-Max:

    24 V

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm
