A good PCB layout for the NCP781BMN150TAG should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the recommended operating range. Also, add a soft-start circuit to limit the inrush current during start-up.
When selecting the output capacitor, consider the capacitance value, ESR, and voltage rating. A higher capacitance value can reduce output voltage ripple, but may increase the start-up time. Choose a capacitor with a low ESR to minimize energy losses, and ensure the voltage rating is higher than the output voltage.
To minimize standby power consumption, ensure that the device is in shutdown mode when not in use. Use a low-voltage, low-current shutdown signal, and consider using a low-power mode or pulse-skipping mode to reduce power consumption during light-load conditions.
For thermal design and heat sinking, consider the device's power dissipation, junction temperature, and thermal resistance. Use a heat sink with a low thermal resistance, and ensure good thermal contact between the device and heat sink. Also, consider using thermal interface materials to reduce thermal resistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP781BMN150TAG Overview

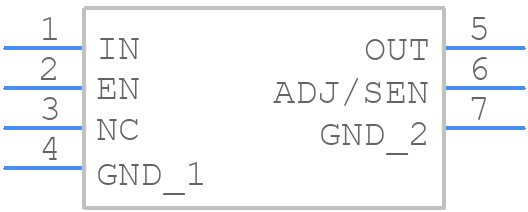

Use the download button to access the NCP781BMN150TAG schematic symbol, PCB footprint, and 3D model.
