A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated ground plane is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and conformal coatings to protect the device from moisture and humidity.
The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 25V or higher, and an ESR of 10mΩ or lower. For the output capacitor, a 22uF ceramic capacitor with a voltage rating of 16V or higher, and an ESR of 10mΩ or lower is recommended.
To troubleshoot issues with the enable pin (EN), check the voltage level on the EN pin, ensure it's within the recommended range (1.5V to 5.5V), and verify that it's not being driven by multiple sources. Also, check the EN pin's connection to the microcontroller or other control signals.
The recommended method for soldering the device is reflow soldering, using a solder paste with a melting point of 217°C or higher. Hand soldering is not recommended due to the device's small size and lead pitch. Ensure the soldering temperature and time are within the recommended specifications to avoid damaging the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP81074BMNTBG Overview

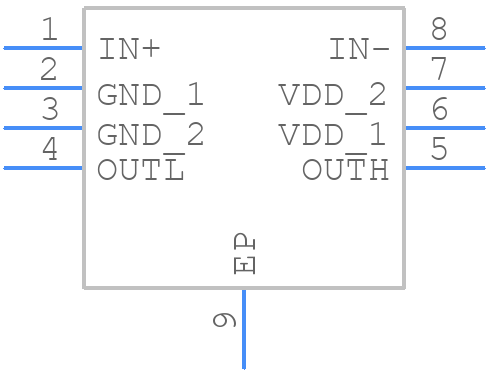

Use the download button to access the NCP81074BMNTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP81,
or try a keyword search, such as MOSFET Drivers
