A good PCB layout for the NCP81151MNTAG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF ceramic capacitor is recommended at the output.
The maximum ambient temperature range for the NCP81151MNTAG is -40°C to +125°C. However, the device can operate up to 150°C junction temperature.
Yes, the NCP81151MNTAG is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow the recommended operating conditions and design guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the NCP81151MNTAG, start by checking the input voltage, output voltage, and current. Verify that the device is operating within its recommended specifications. Check for any signs of overheating, and ensure that the PCB layout and component selection are correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP81151MNTAG Overview

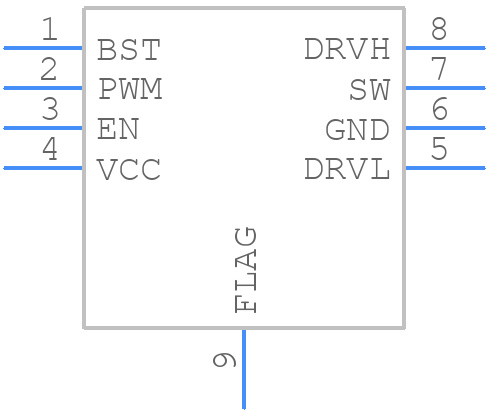

Use the download button to access the NCP81151MNTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP81,
or try a keyword search, such as MOSFET Drivers
