Part Image

NCP81239MNTXG - onsemi

Description: 4.5 V to 28 V operating range; I2C interface; Switching frequency from 150 kHz to 1200 kHz; Slew rate control during transition; Supports USB-PD, QC2.0, and QC3.0 profiles; Overvoltage and overcurrent protection

Download NCP81239MNTXG Model

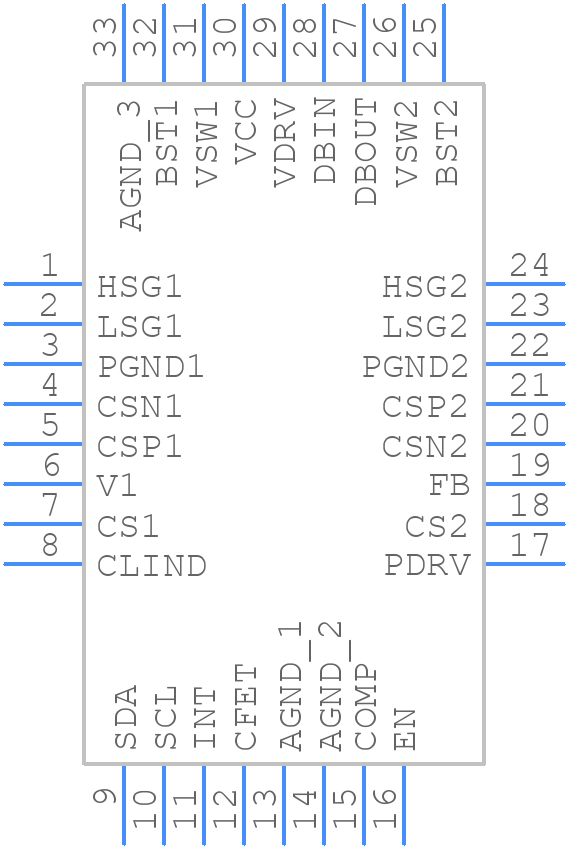

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81239MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5x5, 0.5P QFN32 5x5, 0.5P
click to zoom
3D Models
NCP81239MNTXG - onsemi  - 3D model - Quad Flat No-Lead - QFN32 5x5, 0.5P QFN32 5x5, 0.5P
click to zoom

NCP81239MNTXG Details

  • Manufacturer Part Number:

    NCP81239MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-32

  • Manufacturer Package Code:

    485CE

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NCP81239MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component side of the PCB clear of copper to minimize thermal resistance.
  • Ensure that the input voltage rises monotonically and does not droop during start-up. A soft-start circuit can be used to limit the inrush current and ensure reliable start-up.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the device is rated for operation up to 150°C. However, the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * Rcoil * fsw) / (L * Cout), where Iout is the output current, Rcoil is the coil resistance, fsw is the switching frequency, L is the inductor value, and Cout is the output capacitance.
