NCP81610MNTXG - onsemi

Description: Compliant with NVIDIA OVR4i+ Specifications; Under Voltage Protection (UVP); Supports up to 8 Phases; 2.8 V to 20 V Supply Voltage Range:; 250 kHz to 1.2 MHz Switching Frequency (8 Phase); Over Voltage Protection (OVP); Per Phase Over Current Limiting (OCL); System Over Current Protection (OCP); Startup into Pre−Charged Loads while Avoiding False OVP; Configurable Load Line; True Differential Current Balancing Sense Amplifiers for Each Phase; Phase−to−Phase Dynamic Current Balancing; Current Mode Dual Edge

Download NCP81610MNTXG Model

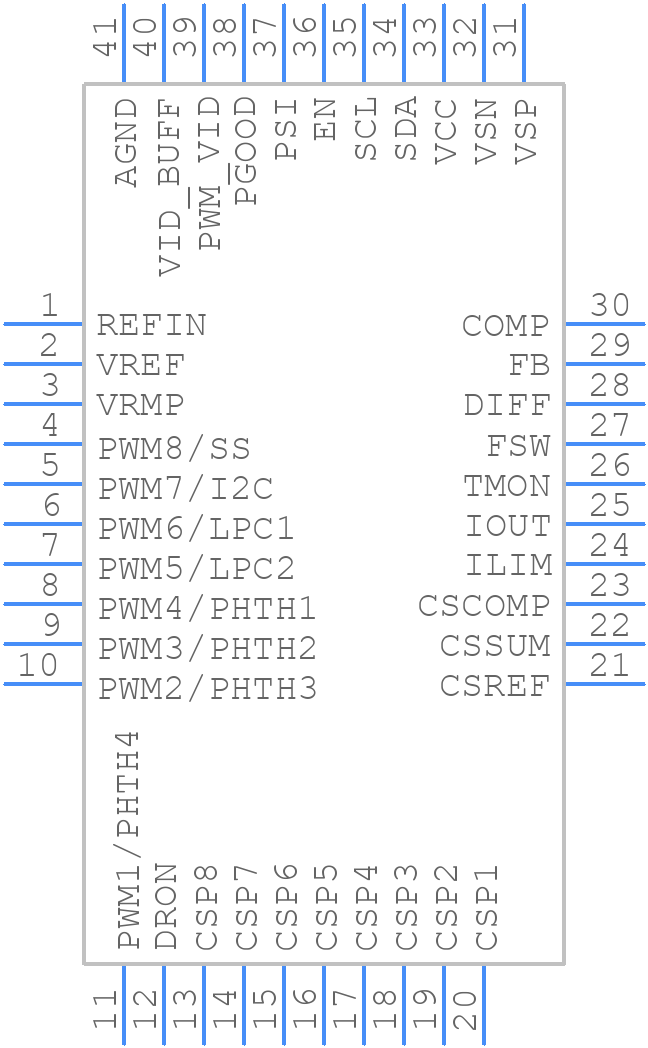

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP81610MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 5x5
click to zoom
3D Models
NCP81610MNTXG - onsemi  - 3D model - Quad Flat No-Lead - QFN40 5x5
click to zoom

NCP81610MNTXG Details

  • Manufacturer Part Number:

    NCP81610MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-40

  • Manufacturer Package Code:

    485CR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-17

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.4 V

  • Input Voltage-Min:

    4.6 V

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NCP81610MNTXG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the exposed pad to the ground plane is recommended for optimal thermal performance.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions and derating guidelines to ensure reliable operation at high temperatures.
  • The maximum allowed voltage on the EN pin is 6V, exceeding this may cause damage to the device.
  • Yes, but ensure the device is properly heatsinked and the current is within the recommended operating conditions to prevent overheating and damage.
  • Check the EN pin voltage, ensure the input voltage is within the recommended range, and verify the device is properly connected and configured.
