NCR2-123+ - Mini-Circuits

Description: Signal Conditioning TC XFMR / SURF MOUNT / RoHS

Download NCR2-123+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

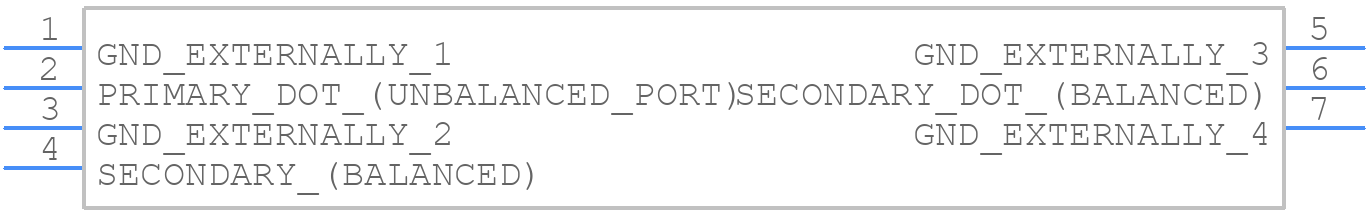

Symbol
NCR2-123+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCR2-123+ - Mini-Circuits PCB footprint - Other - Other - NCR2-123+-3
click to zoom
3D Models
NCR2-123+ - Mini-Circuits - 3D model - Other - NCR2-123+-3
click to zoom

NCR2-123+ Details

  • Manufacturer Part Number:

    NCR2-123+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    12000 MHz

  • Cut-off Frequency-Min:

    4700 MHz

  • Height:

    0.89 mm

  • Insertion Loss:

    2.7 dB

  • Length:

    2.49 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2.01 mm

NCR2-123+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCR2-123+ is -40°C to +85°C.
  • Yes, the NCR2-123+ is RoHS (Restriction of Hazardous Substances) compliant.
  • The typical current consumption of the NCR2-123+ is 30mA.
  • Yes, the NCR2-123+ can be used in a switching application, but it's recommended to use a series resistor to limit the current and prevent damage to the device.
  • The recommended PCB layout for the NCR2-123+ is to use a ground plane underneath the device, and to keep the input and output traces as short as possible to minimize parasitic inductance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCR2-123+ Overview

Use the download button to access the NCR2-123+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCR2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
