NCS1-422+ - Mini-Circuits

Description: Signal Conditioning 1:1 LTCC Transformer, 3300 - 4000 MHz, 50 ohms

Download NCS1-422+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

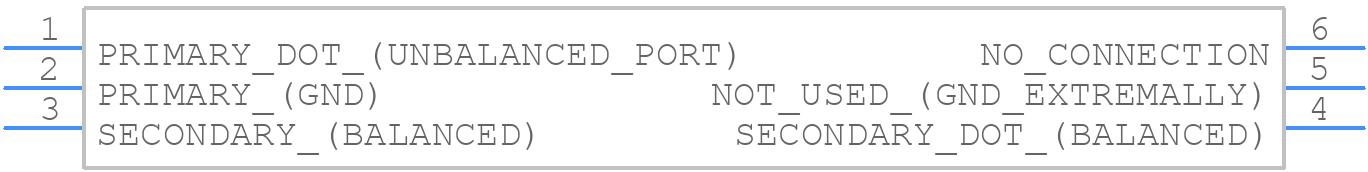

NCS1-422+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS1-422+ - Mini-Circuits PCB footprint - Other - Other - NCS1-422+-1
click to zoom
3D Models
NCS1-422+ - Mini-Circuits - 3D model - Other - NCS1-422+-1
click to zoom

NCS1-422+ Details

  • Manufacturer Part Number:

    NCS1-422+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Min:

    3300 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    1.24 mm

NCS1-422+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the device. The device should be placed near the edge of the board to minimize signal reflections. A low-impedance path to ground is essential for the device's internal biasing network.
  • The NCS1-422+ requires a single +5V supply and a bias resistor (Rb) connected between the Vcc pin and the bias pin. The recommended value for Rb is 1kΩ. The device also requires a 10nF decoupling capacitor between the Vcc pin and ground.
  • The NCS1-422+ is rated for operation from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for temperature-related derating information.
  • Yes, the NCS1-422+ can be used in switching power supply applications, but the user should ensure that the device is properly bypassed and decoupled to prevent noise and ripple from affecting its performance.
  • Common issues with the NCS1-422+ include oscillations, noise, and instability. To troubleshoot these issues, check the PCB layout and grounding scheme, ensure proper biasing and decoupling, and verify that the input and output signals are within the recommended specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1-422+ Overview

Use the download button to access the NCS1-422+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
