Part Image

NCS1-521+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS

Download NCS1-521+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

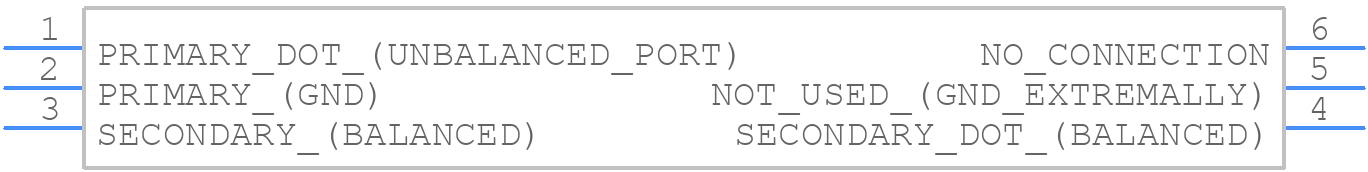

Symbol
NCS1-521+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS1-521+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-9_2022
click to zoom
3D Models
NCS1-521+ - Mini-Circuits - 3D model - Other - GE0805C-9_2022
click to zoom

NCS1-521+ Details

  • Manufacturer Part Number:

    NCS1-521+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    520 MHz

  • Cut-off Frequency-Min:

    223 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS1-521+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides a set of impedance matching circuits in their application notes. You can also use simulation tools like ADS or AWR to design a custom impedance matching network.
  • The maximum power handling of the NCS1-521+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of input power. It's essential to derate the power handling based on the operating frequency and temperature.
  • While the NCS1-521+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's performance may degrade due to the high-frequency switching transients. It's recommended to consult with Mini-Circuits' application engineers for guidance on using the device in switching applications.
  • The thermal resistance of the NCS1-521+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the thermal resistance is approximately 20°C/W. This information can be used to estimate the junction temperature and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1-521+ Overview

Use the download button to access the NCS1-521+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
