NCS1.5-232+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MOUNT / RoHS

Download NCS1.5-232+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

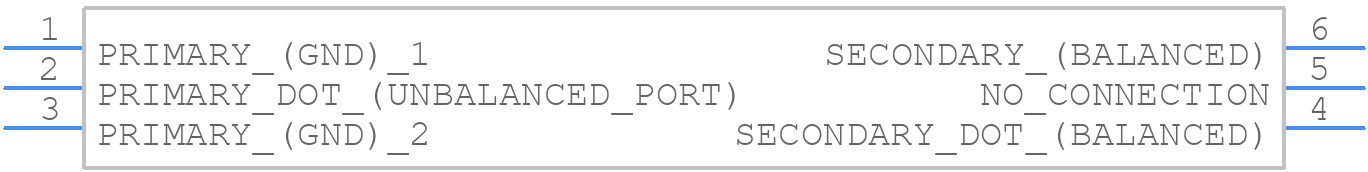

NCS1.5-232+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS1.5-232+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-9
click to zoom
3D Models
NCS1.5-232+ - Mini-Circuits - 3D model - Other - GE0805C-9
click to zoom

NCS1.5-232+ Details

  • Manufacturer Part Number:

    NCS1.5-232+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.42

  • Cut-off Frequency-Max:

    2300 MHz

  • Cut-off Frequency-Min:

    400 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1.6 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS1.5-232+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a 50-ohm microstrip transmission line for the RF signal path. The device should be placed near the edge of the board to minimize signal reflections.
  • The device has a thermal pad on the bottom, which should be connected to a thermal ground plane or a heat sink. Ensure good thermal conductivity between the device and the heat sink, and avoid thermal barriers such as solder mask or varnish.
  • The device is rated for operation from -40°C to +85°C, but the performance may degrade at higher temperatures. It's recommended to derate the power handling by 1 dB for every 10°C above 60°C.
  • Yes, the NCS1.5-232+ can be used in a push-pull configuration, but it's essential to ensure that the two devices are properly matched and biased to avoid uneven current sharing and potential oscillations.
  • Mini-Circuits recommends a voltage-controlled current source biasing scheme, with a voltage regulator and a current sense resistor. The bias voltage should be set to 5V, and the current limit should be set to 200mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1.5-232+ Overview

Use the download button to access the NCS1.5-232+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS1., or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
