NCS1002ADR2G - onsemi

Description: Low Input Offset Voltage: 0.5 mV, Typ; Input Common-Mode Range includes Ground; Low Quiescent Current: 75 µA per Op Amp at VCC = 5 V; Large Output Voltage Swing; Wide Power Supply Range: 3 V to 36 V; High ESD Protection: 2 kV

Download NCS1002ADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

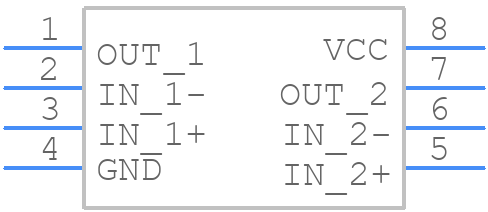

Symbol
NCS1002ADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS1002ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB-
click to zoom
3D Models
NCS1002ADR2G - onsemi - 3D model - Small Outline Packages - SOIC−8 NB-
click to zoom

NCS1002ADR2G Details

  • Manufacturer Part Number:

    NCS1002ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    100 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCS1002ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS1002ADR2G involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common-mode choke and a shielded inductor to reduce EMI.
  • To ensure the NCS1002ADR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified limits to prevent overheating.
  • The recommended input capacitor value for the NCS1002ADR2G is 10uF to 22uF, with an ESR of 0.1 ohms or less. This helps to filter out noise and ensure stable operation.
  • The NCS1002ADR2G is rated for operation up to 125°C, but it's recommended to derate the device's output current and voltage as the temperature increases. Consult the datasheet for specific derating guidelines.
  • To troubleshoot issues with the NCS1002ADR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value. If issues persist, consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS1002ADR2G Overview

Use the download button to access the NCS1002ADR2G schematic symbol, PCB footprint, and 3D model.
