NCS2-222+ - Mini-Circuits

Description: RF Transformer 50Ω 1275 to 2200 MHz 1:2 Ratio

Download NCS2-222+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

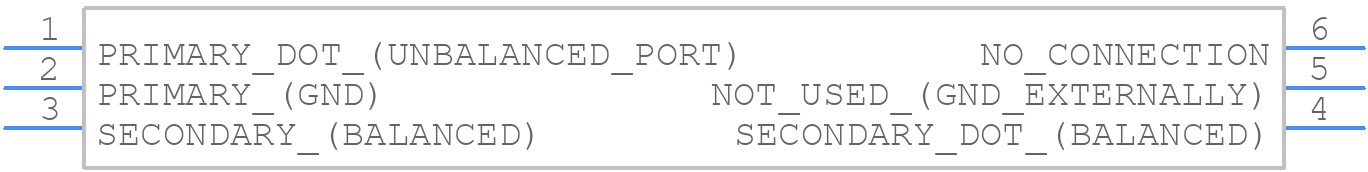

NCS2-222+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS2-222+ - Mini-Circuits PCB footprint - Other - Other - NCS2-222+-1
click to zoom
3D Models
NCS2-222+ - Mini-Circuits - 3D model - Other - NCS2-222+-1
click to zoom

NCS2-222+ Details

  • Manufacturer Part Number:

    NCS2-222+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.45

  • Additional Feature:

    OHMS RATIO IS 2

  • Cut-off Frequency-Min:

    1275 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    1.24 mm

NCS2-222+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the NCS2-222+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • The NCS2-222+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the input and output impedances to 50 ohms.
  • The operating temperature range of the NCS2-222+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
  • Yes, the NCS2-222+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the device's bandwidth.
  • The NCS2-222+ requires a positive bias voltage (Vdd) of 2-5 volts and a negative bias voltage (Vgg) of -0.5 to -2 volts. The recommended bias current is 10-20 mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS2-222+ Overview

Use the download button to access the NCS2-222+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS2-, or try a keyword search, such as RF Transformers
