NCS2-232+ - Mini-Circuits

Description: RF Balun 900MHz ~ 2.3GHz 1:2 0805 (2012 Metric), 6 PC Pad

Download NCS2-232+ Model

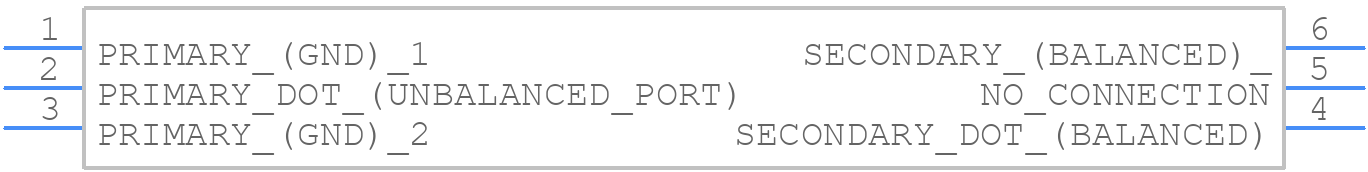

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2-232+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-9_2024-3
click to zoom
3D Models
NCS2-232+ - Mini-Circuits  - 3D model - Other - GE0805C-9_2024-3
click to zoom

NCS2-232+ Details

  • Manufacturer Part Number:

    NCS2-232+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    2300 MHz

  • Cut-off Frequency-Min:

    900 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1.6 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS2-232+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Also, it's essential to connect the device's ground pins to the PCB's ground plane.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet. Make sure to use a stable voltage source, and decouple the power supply lines with capacitors. Also, ensure the bias resistors are of high quality and have a low temperature coefficient.
  • The NCS2-232+ can handle up to 1W of power. However, it's essential to ensure the device is properly heat-sinked to prevent overheating. Mini-Circuits recommends using a heat sink with a thermal resistance of less than 10°C/W.
  • To troubleshoot common issues, start by checking the PCB layout and grounding scheme. Ensure that the device is properly biased and the power supply lines are decoupled. Also, check for any signs of overheating or damage to the device. If the issue persists, consult the datasheet and application notes for further guidance.
  • The recommended operating conditions for the NCS2-232+ are: temperature range of -40°C to +85°C, supply voltage of 12V to 15V, and a bias current of 100mA to 200mA. Operating the device outside these conditions may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS2-232+ Overview

Use the download button to access the NCS2-232+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
