NCS2-282+ - Mini-Circuits

Description: RF Balun 625MHz ~ 2.815GHz 1:2 0805 (2012 Metric), 6 PC Pad

Download NCS2-282+ Model

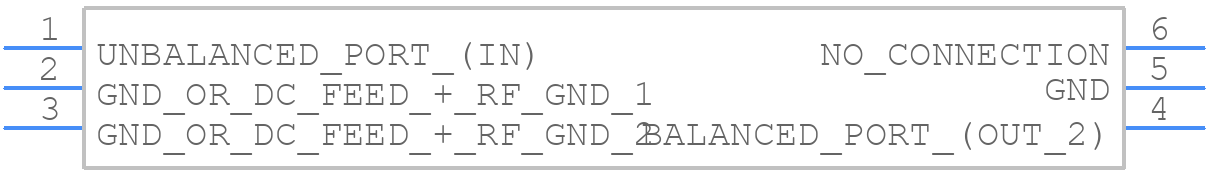

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2-282+ - Mini-Circuits PCB footprint - Other - Other - NCS2-282+-2
click to zoom
3D Models
NCS2-282+ - Mini-Circuits  - 3D model - Other - NCS2-282+-2
click to zoom

NCS2-282+ Details

  • Manufacturer Part Number:

    NCS2-282+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    2815 MHz

  • Cut-off Frequency-Min:

    625 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    4.12 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS2-282+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides a set of impedance matching networks in their application notes. You can also use simulation tools like ADS or AWR to design a custom matching network based on your system's requirements.
  • The maximum power handling of the NCS2-282+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power. Exceeding this limit may result in reduced performance, reliability issues, or even device failure.
  • While the NCS2-282+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, you'll need to ensure that the device is properly biased and that the switching frequency is within the device's bandwidth. Additionally, you may need to add external components to prevent damage from high-frequency transients.
  • The operating temperature range of the NCS2-282+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
