NCS2-33+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS

Download NCS2-33+ Model

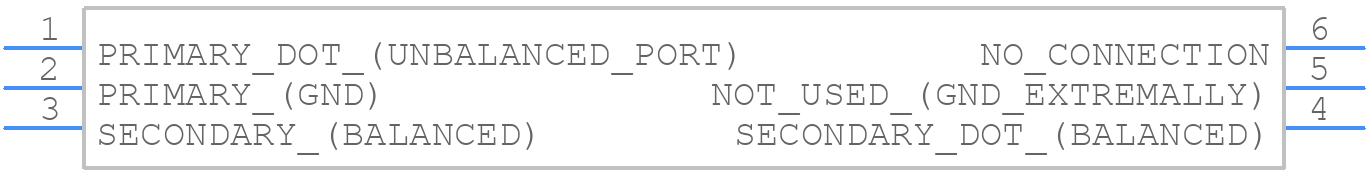

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2-33+ - Mini-Circuits PCB footprint - Other - Other - NCS2-33+-1
click to zoom
3D Models
NCS2-33+ - Mini-Circuits  - 3D model - Other - NCS2-33+-1
click to zoom

NCS2-33+ Details

  • Manufacturer Part Number:

    NCS2-33+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    OHMS RATIO IS 2

  • Cut-off Frequency-Min:

    1500 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    1.24 mm

NCS2-33+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The NCS2-33+ can generate significant heat during operation. It's crucial to provide adequate heat sinking, such as a thermal pad or heat sink, to keep the junction temperature below 125°C. Ensure good airflow and avoid blocking the airflow around the device.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to limit the input power to 1W or less to avoid damage to the device. Exceeding this power may cause permanent damage or affect the device's reliability.
  • Yes, the NCS2-33+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range (typically up to 100 MHz). Additionally, consider the device's settling time and potential ringing effects.
  • The NCS2-33+ has a nominal input impedance of 50 ohms. To ensure optimal performance, it's crucial to match the impedance of your system to the device's input impedance using impedance-matching networks or transformers.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS2-33+ Overview

Use the download button to access the NCS2-33+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
