NCS2-622+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS

Download NCS2-622+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

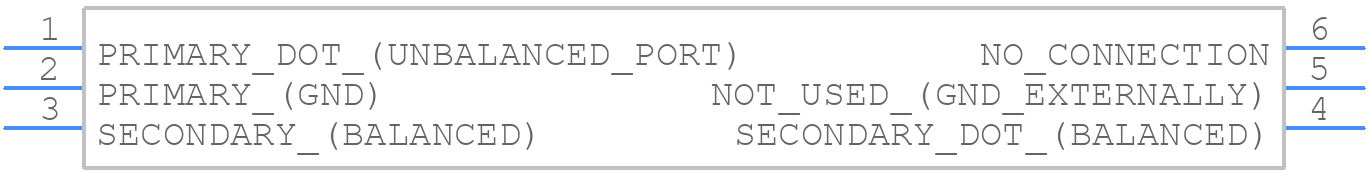

NCS2-622+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS2-622+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-1_2023-1
click to zoom
3D Models
NCS2-622+ - Mini-Circuits - 3D model - Other - GE0805C-1_2023-1
click to zoom

NCS2-622+ Details

  • Manufacturer Part Number:

    NCS2-622+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    OHMS RATIO IS 2

  • Cut-off Frequency-Min:

    5600 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    1.24 mm

NCS2-622+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-inductance path to ground for the device's ground pins. A good layout practice is to use a star-grounding scheme, where all ground connections are connected to a single point on the PCB.
  • The NCS2-622+ requires a bias voltage of 5V ± 0.5V and a bias current of 100mA ± 10mA. Ensure that the bias voltage is well-regulated and decoupled to prevent noise and ripple from affecting the device's performance.
  • The NCS2-622+ is rated for operation from -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • The NCS2-622+ is an ESD-sensitive device. Handle the device with ESD-protective equipment, such as wrist straps and mats, and ensure that the PCB is designed with ESD protection in mind, such as using ESD-protection diodes and resistors.
  • The NCS2-622+ is designed for 50Ω input and output impedance matching. Ensure that the input and output traces on the PCB are designed to match this impedance to prevent signal reflections and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS2-622+ Overview

Use the download button to access the NCS2-622+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS2-, or try a keyword search, such as RF Transformers
