NCS2-83+ - Mini-Circuits

Description: Signal Conditioning 1:2 LTCC Transformer, 3000 - 8000 MHz, 50 ohms Ceramic Balun

Download NCS2-83+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

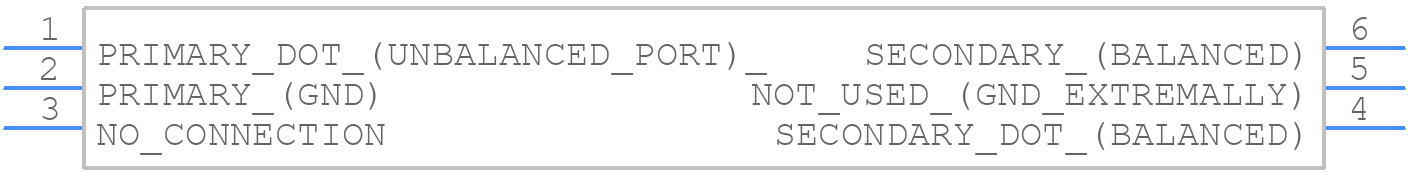

NCS2-83+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS2-83+ - Mini-Circuits PCB footprint - Other - Other - NCS2-83+-2
click to zoom
3D Models
NCS2-83+ - Mini-Circuits - 3D model - Other - NCS2-83+-2
click to zoom

NCS2-83+ Details

  • Manufacturer Part Number:

    NCS2-83+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    OHMS RATIO IS 2

  • Cut-off Frequency-Min:

    3000 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1.9 dB

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    1.24 mm

NCS2-83+ Frequently Asked Questions (FAQs)

  • The maximum power handling of NCS2-83+ is 2 watts, making it suitable for low-power applications.
  • Yes, NCS2-83+ is designed to operate up to 8.3 GHz, making it suitable for high-frequency applications such as microwave and millimeter-wave systems.
  • The insertion loss of NCS2-83+ is typically around 0.5 dB, which is relatively low and makes it suitable for applications where signal loss needs to be minimized.
  • Yes, NCS2-83+ can be used as either a splitter or a combiner, depending on the application. It can split a single input signal into two output signals or combine two input signals into a single output signal.
  • The isolation between ports on NCS2-83+ is typically around 20 dB, which is sufficient for most applications where port-to-port isolation is required.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS2-83+ Overview

Use the download button to access the NCS2-83+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
