Description:Unity Gain Bandwidth: 7 MHz at VS = 5 V; Fast Slew Rate: 8 V/?µs rising, 12.5 V/µ?s falling at VS = 5 V; Rail−to−Rail Output; No Output Phase Reversal for Over−Driven Input Signals; Low Offset Voltage: 0.5 mV typical; Low Input Bias Current: 1 pA typical; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
A good PCB layout for the NCS20032DTBR2G involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. The recommended bias voltage is 5V, but the device can operate from 4.5V to 5.5V. Ensure the voltage supply is decoupled with a 10uF capacitor.
The maximum power dissipation of the NCS20032DTBR2G is 1.4W. However, this value can be affected by the operating frequency, supply voltage, and ambient temperature. Ensure proper thermal management to prevent overheating.
The NCS20032DTBR2G is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's power dissipation at high temperatures.
To troubleshoot issues with the NCS20032DTBR2G, start by verifying the power supply and biasing. Check for proper decoupling, and ensure the input and output signals are within the recommended specifications. Use an oscilloscope to verify the signal integrity and check for any signs of oscillation or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS20032DTBR2G Overview

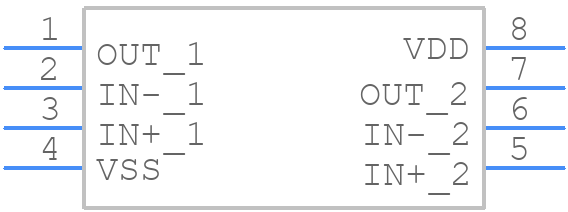

Use the download button to access the NCS20032DTBR2G schematic symbol, PCB footprint, and 3D model.
