NCS20062DMR2G - onsemi

Description: These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Available in a Variety of Packages; Wide Temperature Range: −40 to 125°C; Low Input Bias Current: 1 pA Typical; Low Supply Current: 125 µ?A per Channel at VS = 1.8 V; High Slew Rate: 1.2 V/?s at VS = 1.8 V; Wide Bandwidth: 3 MHz; Wide Supply Range: 1.8 to 5.5 V; Rail−to−Rail Input and Output

Download NCS20062DMR2G Model

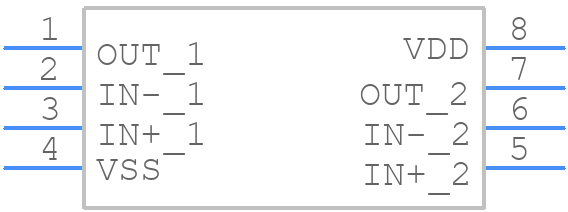

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS20062DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCS20062DMR2Gsssss
click to zoom
3D Models
NCS20062DMR2G - onsemi  - 3D model - Small Outline Packages - NCS20062DMR2Gsssss
click to zoom

NCS20062DMR2G Details

  • Manufacturer Part Number:

    NCS20062DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro8

  • Package Description:

    MSOP-8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2016-04-08

  • Manufacturer:

    onsemi

  • YTEOL:

    6.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Common-mode Reject Ratio-Min:

    53 dB

  • Common-mode Reject Ratio-Nom:

    76 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3 mm
