Part Image

NCS20062DR2G - onsemi

Description: These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Available in a Variety of Packages; Wide Temperature Range: −40 to 125°C; Low Input Bias Current: 1 pA Typical; Low Supply Current: 125 µ?A per Channel at VS = 1.8 V; High Slew Rate: 1.2 V/?s at VS = 1.8 V; Wide Bandwidth: 3 MHz; Wide Supply Range: 1.8 to 5.5 V; Rail−to−Rail Input and Output

Download NCS20062DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

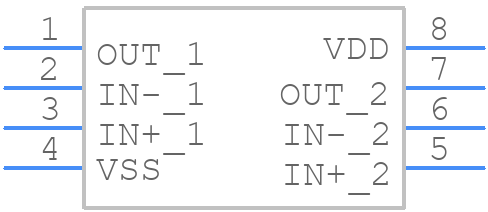

Symbol
NCS20062DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS20062DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCS20062DR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCS20062DR2G Details

  • Manufacturer Part Number:

    NCS20062DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2016-04-08

  • Manufacturer:

    onsemi

  • YTEOL:

    6.52

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Common-mode Reject Ratio-Min:

    53 dB

  • Common-mode Reject Ratio-Nom:

    76 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

NCS20062DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS20062DR2G should include a solid ground plane, decoupling capacitors close to the device, and a separate analog and digital ground plane. The datasheet provides a recommended PCB layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
  • To ensure the NCS20062DR2G operates within its recommended operating conditions, monitor the device's junction temperature, supply voltage, and output current. Implement thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 150°C. Also, ensure the supply voltage is within the recommended range of 2.7V to 5.5V, and the output current does not exceed 200mA.
  • To filter out noise and interference in the NCS20062DR2G output, use a low-pass filter or a ferrite bead in series with the output. You can also add a capacitor in parallel with the output to filter out high-frequency noise. Additionally, ensure the PCB layout is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • To troubleshoot issues with the NCS20062DR2G, start by checking the power supply voltage, output voltage, and output current. Use an oscilloscope to monitor the output waveform and check for any anomalies. Verify that the device is operating within its recommended operating conditions and that the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • Yes, the NCS20062DR2G is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive applications. However, ensure that you follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure the device operates reliably in these applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS20062DR2G Overview

Use the download button to access the NCS20062DR2G schematic symbol, PCB footprint, and 3D model.
