NCS20072DTBR2G - onsemi

Description: Rail−To−Rail Output; Wide Supply Range: 2.7 V to 36 V; Wide Bandwidth: 3 MHz typical at VS = 2.7 V; High Slew Rate: 2.8 V/µs typical at VS = 2.7 V; Low Supply Current: 405 µA per channel at VS = 2.7 V; Low Input Bias Current: 5 pA typical; Wide Temperature Range: −40°C to 125°C; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

Download NCS20072DTBR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

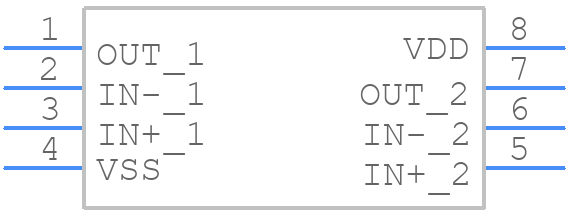

NCS20072DTBR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS20072DTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−8 3.0x4.4x1.1 CASE 948S ISSUE C
click to zoom
3D Models
NCS20072DTBR2G - onsemi - 3D model - Small Outline Packages - TSSOP−8 3.0x4.4x1.1 CASE 948S ISSUE C
click to zoom

NCS20072DTBR2G Details

  • Manufacturer Part Number:

    NCS20072DTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-8

  • Manufacturer Package Code:

    948S-01

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    2.7 V/us

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3200

  • Width:

    3 mm

NCS20072DTBR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Exceeding the maximum TJ rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It is essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins to protect the device from electrostatic discharge. Follow proper PCB design and handling practices to minimize the risk of ESD damage.
  • Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 60s max. For rework, use a low-temperature soldering iron (350°C max) and avoid applying excessive heat or force to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS20072DTBR2G Overview

Use the download button to access the NCS20072DTBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS20, or try a keyword search, such as Operational Amplifiers
